PANEL PUR/PIR
PANEL PUR/PIR - Image 2

PANEL PUR/PIR

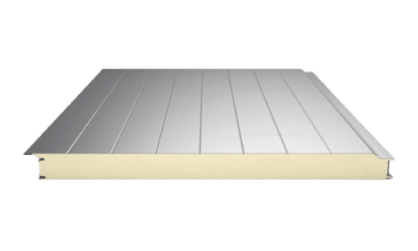

PU Panel is made up of a closed-structure Polyurethane core with high density, creating a solid and durable structure. In addition, PU Panel is produced by 2 components in the water system, through the swelling process, it adheres evenly on the entire 2 new corrugated iron surfaces to form the core of the Panel, creating a solid block, different from other conventional Panels that require glue to stick the layers together. Therefore, PU Panel has outstanding advantages compared to other types of soundproof and heat-insulating Panels.

DOWNLOAD DOCUMENT

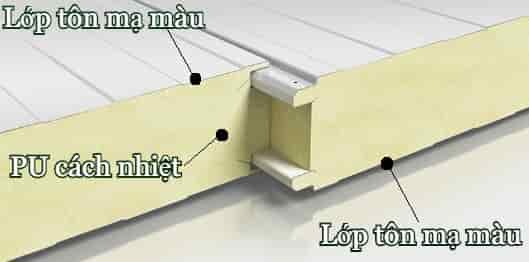

 STRUCTURE

Consists of 3 layers: Top layer: made from aluminum-zinc alloy color-coated steel that can resist oxidation, antibacterial and corrosion with an average thickness of 0.4mm – 0.6mm. The thickness of this base layer depends on each function of the project to be able to choose the appropriate type. Middle layer: is a PU foam layer (Polyurethane) with the effect of insulation, heat insulation, sound insulation. Bottom layer: similar to the top layer, the bottom layer of the PU Panel is also made of aluminum-zinc alloy color-coated steel to ensure anti-corrosion and anti-oxidation.

Technical information

TECHNICAL SPECIFICATIONS OF PU INSULATION PANEL

STT INDICATORS DESCRIBE
1 Two surfaces Aluminum zinc alloy coated steel layer, electrostatic paint with thickness of 0.4-0.6mm
2 Middle layer Regular PU or flame retardant PU (level B2)
3 PU density 40kg/m3 (±2)
4 Width 1000mm or 1125mm or 1130mm
5 Length Any depending on transport capacity (≤15m)
6 Product thickness From 40 – 200mm



Application

  • With outstanding advantages in installation time, construction, heat resistance, high aesthetics and durability.
  • Used for ceilings, partitions and exterior walls of buildings.
  • Clean room, cold storage, laboratory assembly.
  • Assembling temporary houses, factories, warehouses for product storage.
  • Assembling cold storage, freezers, and heat preservation chambers for food processing, agricultural and seafood products, supermarket systems, etc.
  • Assembling office buildings, schools, hospitals, etc.
  • Making clean room panel doors, cold storage panel doors, etc.
  • Used for panel houses, panel coffee shops,…
  • Foundation for construction works.
